Conversion Hardware Checklist for 48V Mowers

The Edmond electric conversion plans are not just a tractor that can cut grass. It is a tractor that can do many jobs around the home, example a trailer hitch that can move your boat trailer or pull a trailer load of soil a 3 foot blade for plowing, snow, levelling soil and gravel. A three-point hitch at the back for lifting trailer tongues or pulling small brush or fence posts out of the ground an electric rotor tiller that can be attached to the front,

A good conversion hardware checklist starts before you remove a single bolt. The best electric lawn tractor project is not built around the cheapest parts or the newest-looking donor mower. It starts with a solid tractor, a deck that matches the conversion design, and hardware chosen to work together at 48 volts. Get those decisions right, and you can trade gas cans, oil changes, hard starts, and much of the noise for quiet rechargeable power.

This is a hands-on project, but it is within reach for a careful homeowner who can use common tools, follow drawings, and work patiently. YOU CAN DO THIS. The key is to inspect first, buy second, and avoid trying to force a design onto a mower that is not suited for it.

Start Your Conversion Hardware Checklist With the Donor Tractor

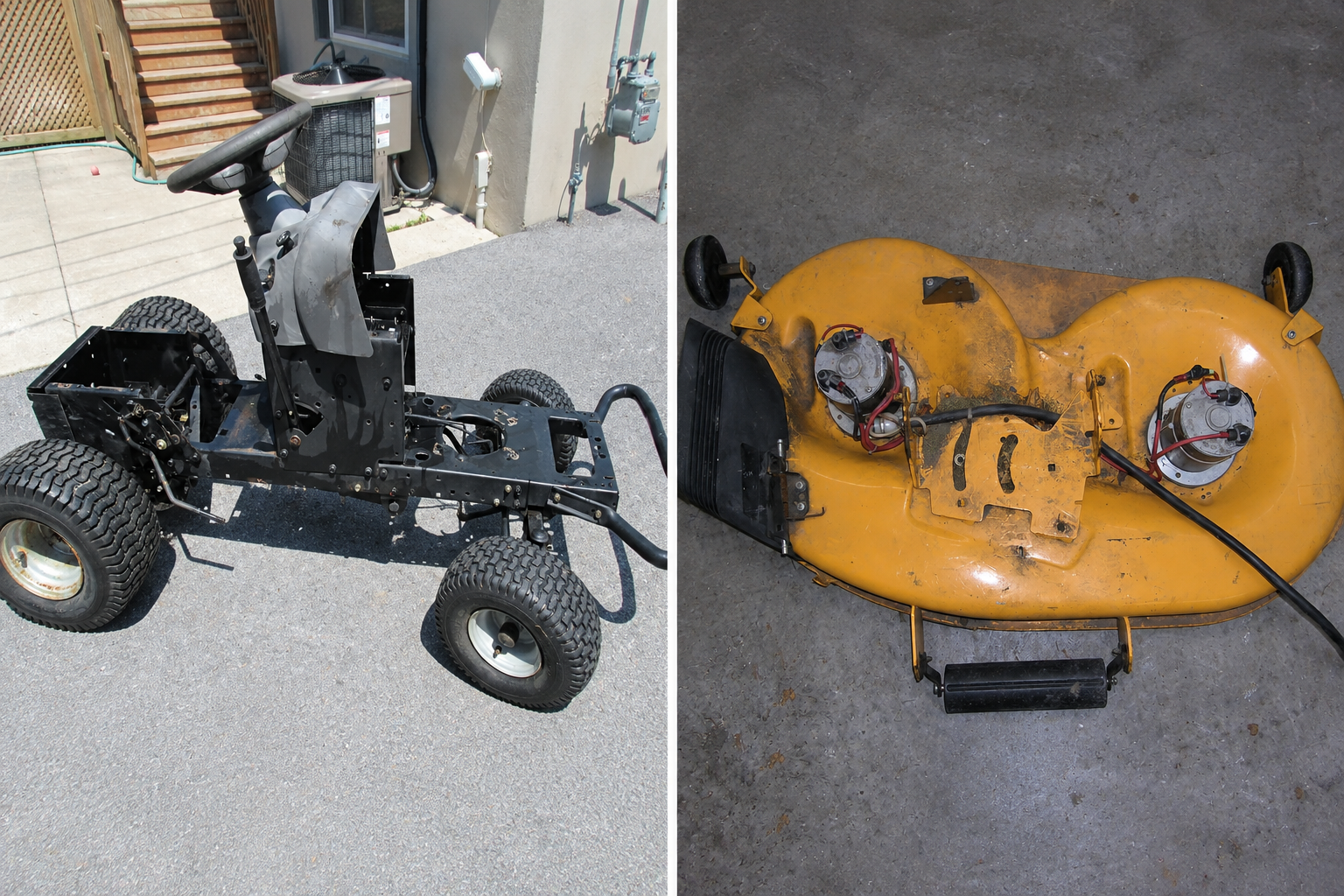

The donor tractor is the foundation of the whole build. A faded hood or worn seat is not a problem. A bent frame, weak steering, damaged deck, or badly rusted chassis is. You are keeping the useful machine you already own, so spend time checking the mechanical parts that will remain after the gas engine is gone.

Look for a common riding lawn tractor steering, wheel bushings, engine bay area for cracks, these can be replaced or welded, a rusted out deck can't, The electric components are dependable, but they cannot make a worn-out tractor safe.

The cutting deck matters just as much. Edmond Electric 48V plans are designed around the popular two-blade, 42-inch cutting deck found on many garden tractors in the United States and Canada. The deck must be an offset two-blade type with a right-hand side discharge chute. It also needs to be structurally sound, not rusted through around the blade openings, discharge area, or mounting points.

Do not assume every 42-inch deck is interchangeable. Measure it, identify the blade arrangement, and inspect how it hangs beneath the tractor. A sound deck with the right layout saves major fabrication work later.

Choose the Right Drive and Cutting Hardware

A conversion is not simply a gas engine replacement. In this design, the gasoline engine does not come out and get replaced by one large electric motor. Instead, the tractor uses an electric transaxle to drive the machine and two separate cutter motors to run the blades.

That difference is a major advantage. There are no engine-to-deck belts or pulleys to set up and maintain. The blade motors are matched to 19-inch to 21-inch blades, with one motor serving each blade on the 42-inch deck. The result is a cleaner layout, quieter operation, and efficient power use where it counts.

Your core drive hardware should include the electric transaxle drive unit, the two cutter motors, properly sized motor controllers, and the switches or controls specified for the system. These pieces must be treated as a matched group. A controller that is too small can overheat or limit performance. Undersized wiring can create voltage drop and unwanted heat. A bargain component that does not fit the documented system can cost more in troubleshooting than it saved at checkout.

Before purchasing, check transaxle mounting dimensions, transaxle, hp or wattage, voltage, motor type e,g, AC or DC shaft length and diameter, rear wheel diameter and vehicle speed this will determine the gear ratio of the transaxle, also is transaxle good for ground contact accessories like a snow plow blade? Cutter motors, HP,voltage ,current, RPMs determine blade tip speed, do not exceed max allowed FPM, attachment method, a universal blade adaptor should fit the motor shaft dia, too small dia motor shaft will not support the blades under cutting conditions, motors should have a flange mounting plate, The plans provide mechanical drawings and installation guidance so you are not left guessing where components belong.

Keep the Safety Hardware in the Build

Do not treat safety switches, fuses, circuit protection, and emergency shutoff provisions as optional extras. An electric tractor has no idling engine sound to remind you that power is available. The system must be wired so the operator has clear control over drive and blade power.

Use the specified high-current protection near the battery pack, along with the correct disconnects, contactors, and control wiring. Route wires away from moving steering parts, sharp deck edges, and places where they can be pinched. Secure every cable run with tie-raps and clips, label all wires, A neat wiring job is easier to inspect and much easier to repair years from now.

Select a 48V Battery System for Your Property

The battery pack determines mowing time, weight distribution, charging needs, and budget. For proven lead-acid capacity, four 12V 120Ah batteries provide a 48V pack capable of cutting up to about two acres of grass under suitable conditions. Grass height, moisture, terrain, blade sharpness, and how heavily you use the drive system all affect actual runtime.

Lithium iron phosphate batteries are also being used with very good results. Four 12.8V 100Ah lithium iron phosphate batteries create the needed 48V-class system and can offer useful weight savings and long cycle life. They generally cost more up front, so the right choice depends on your budget, how often you mow,
Battery capacity is only part of the decision. Check physical dimensions before ordering. Batteries must fit securely in the planned locations without rubbing against wiring, sheet metal, or moving parts. Their weight must also be distributed sensibly so steering traction and deck operation remain predictable.

Buy a smart charger intended for your battery chemistry and pack voltage, charger current determines charging time A lead-acid charger is not a lithium charger. Follow the battery maker's charging requirements, especially when using lithium batteries with built-in battery management systems. One of the practical pleasures of a converted tractor is charging from a standard 120VAC outlet. If you have a solar-panel-supported power system, charging can fit neatly into that setup as well.

Do Not Overlook the Small Hardware

The smaller parts determine whether the conversion feels like a finished machine or an unfinished experiment. Your hardware checklist should account for battery cables, terminals, lugs, heat shrink, cable protection, wire loom, grommets, mounting bolts, locknuts, brackets, and fasteners.

You will also need the tools to make safe connections. That usually means wire cutter, proper lug crimper, wire stripper, drill, bits, sockets, wrenches, multimeter, and protective equipment. A multimeter is not just for experienced electricians. It is how you verify pack voltage, confirm polarity, and check that a connection is doing what the drawing says it should do.

There are trade-offs here. You can fabricate many brackets from suitable steel and reuse sound fasteners from the donor tractor. But do not reuse damaged cable lugs, cracked insulation, or rusted structural hardware. Saving a few dollars is not worth a poor connection or a battery box that shifts while mowing.

Plan the Work Before Parts Arrive

Lay out the project on paper before filling the workshop with boxes. Photograph the original tractor, and measure the battery locations. Remove and discard the gas engine and related fuel components, exhaust, transmission, belts and pulleys blade arbours and all wiring then clean and paint (if needed)

Read the complete instructions before beginning assembly. Step-by-step digital download conversion plans are available for purchase on this website, electrictractor.net. The 48V plans include more than 70 numbered photographs, electrical and mechanical drawings, and a documented build sequence designed for the average hands-on owner. Two years of free email support is included, so you have help when a measurement, wiring detail, or installation question needs a second set of eyes.this can save time and mistakes when building.

Test each stage as you build. Verify battery polarity before connecting high-current cables. Confirm the drive system with the tractor drive wheels safely supported off the ground before its first ground test. Check blade rotation and deck clearance before mowing grass. A slow, careful first test prevents most expensive mistakes.

When you choose a sound donor tractor and follow a proven 48V design, you are doing more than repairing a mower. You are giving useful equipment another working life, making lawn care quieter, less vibration and putting gasoline maintenance behind you one careful step at a time.
