Can Old Tractors Be Electrified? Yes, for Lawn Work

A riding mower that will not start after sitting all winter is not necessarily ready for the scrap pile. For many homeowners, the frame, steering, deck, tires are still useful long after the gasoline engine has become a source of repairs and frustration. So, can old tractors be electrified? Yes - when the tractor is the right type and the conversion is designed around the work it needs to do.

This is not about turning a full-size field tractor into an experimental electric vehicle. It is a practical project for an older gasoline-powered riding lawn tractor with a usable 42-inch mowing deck. Done properly, the result is a quiet, rechargeable lawn machine that starts with a switch, avoids gasoline and oil changes, and keeps a good piece of equipment working.

Can Old Tractors Be Electrified for Mowing?

The best candidates are garden tractors and riding mowers built around the common two-blade, 42-inch cutting deck. These machines were made in huge numbers across the United States and Canada. Their sturdy chassis, steering systems, and mower decks often outlast the engine that originally powered them.

Not every old tractor should be converted. A severely rusted deck, damaged frame, weak steering, can turn a good project into a costly parts chase. Start with the basic question: is the tractor structurally sound enough that you would happily keep using it? If the answer is yes, electrification may make very good sense.

For the Edmond Electric 48V design, the deck needs to be an offset, two-blade type with a right-hand side discharge chute. The deck must not be rusted out. This configuration suits two cutter motors sized for 19-inch to 21-inch blades, which together cover the popular 42-inch cutting width. Check the deck carefully before buying components. A solid deck is central to a successful mower conversion.

Why a Purpose-Built Electric Layout Works Better

It is tempting to imagine removing the gasoline engine and installing one large electric motor in its place. That approach will be very dissapointing, it carries over much of the old gasoline drive system: belts, pulleys, tensioners, and their adjustment problems and even more important, it is very noisy and inefficient, You will have very poor runtime on the Batteries, please be advised, Don't do it! you will give electric tractors a bad reputation.

A better arrangement separates the jobs. The tractor is driven by an electric transaxle, while each mower blade has its own electric cutter motor. There are no engine-to-deck belts or pulleys to maintain. The design is quieter, efficient, and easier to understand once installed because traction and cutting power are not tied to one mechanical power source.

That separation matters on a real lawn. You can move the tractor without starting a gas engine or leaving it running just to move 10 feet when raking leaves, there is no hydrostatic transmission generating heat and wasting battery power you have infinitely variable high efficient electronic speed control and the cutting system does not depend on a belt slipping or an engine governor trying to recover from thick grass. The mower is still a serious machine, but its everyday operation becomes much simpler: charge it, turn it on, drive, and mow.

Electric drive also removes the familiar gasoline-engine chores. No stale fuel. No tuneups, No oil changes. No carburetor cleaning after winter storage. There are still parts to inspect, including blades, tires, steering, battery connections, and deck cleaning, but the extra regular maintenance burden is gone.

Batteries, Range, and the Reality of Your Lawn

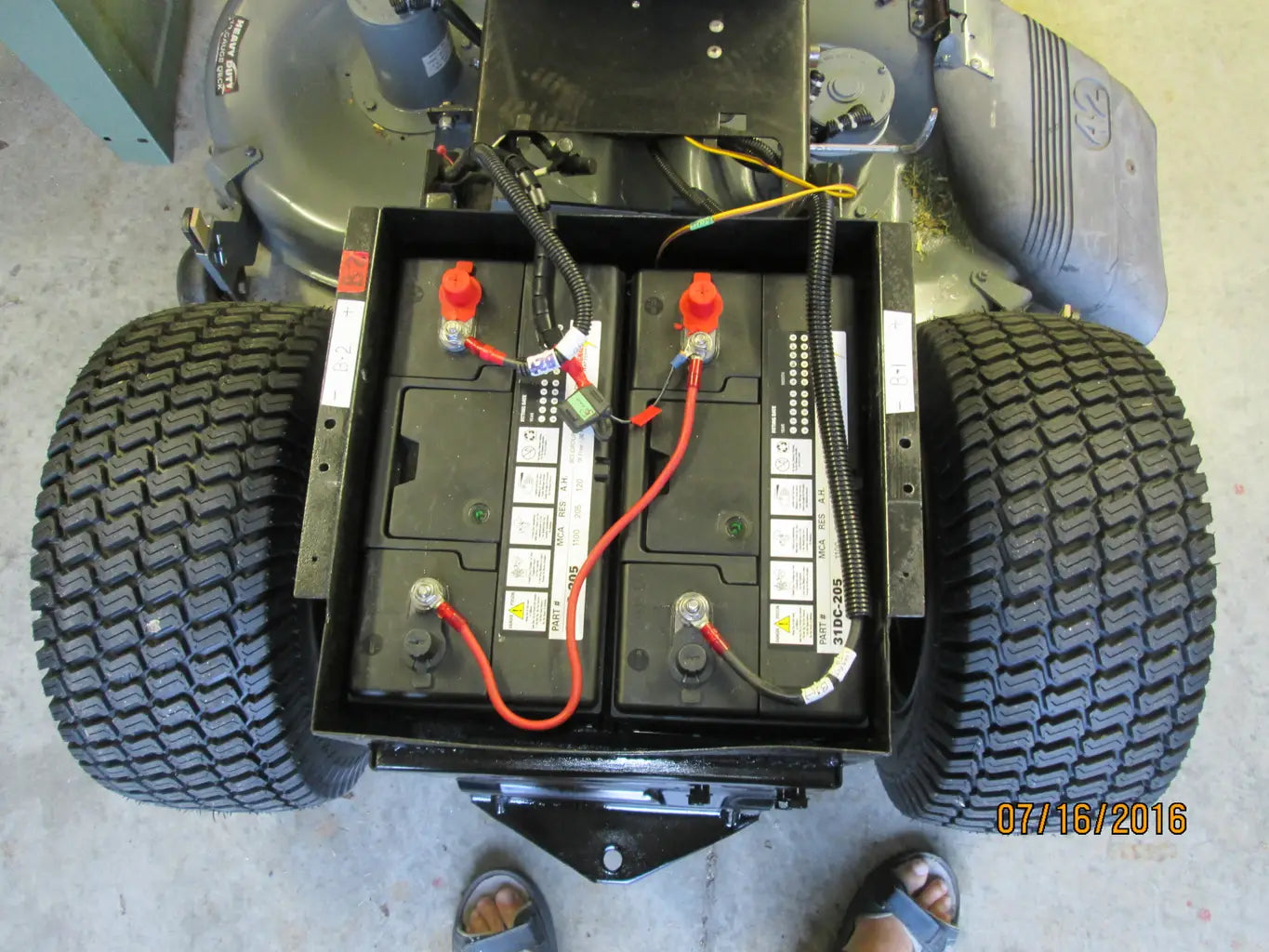

Battery capacity determines how much mowing you can do between charges. A proven 48V battery bank using four 12V, 120Ah lead-acid batteries can cut up to about two acres of grass under normal conditions. Grass height, moisture, terrain, blade sharpness will always determine how much power is used gas or electric.

Lithium iron phosphate batteries are also being used with excellent results. Four 12.8V, 100Ah lithium iron phosphate batteries provide a lighter battery option with useful performance and long service life when installed correctly. Lithium batteries cost more up front, while lead-acid batteries can be less expensive initially. The right choice depends on budget, desired weight reduction, charging habits, and how much mowing you expect to do.

Do not choose batteries by price alone. Batteries are the fuel tank of an electric tractor, and they must be matched to the system voltage, motor requirements, and available battery space. They also need secure mounting and proper cable sizing, too small a cable limits power and causes waste heat. A well-planned battery installation is safer and performs better than a rushed one.

Most owners can charge from a standard 120VAC outlet. That means the tractor can be plugged in where it is stored rather than hauled to a gas station or supplied with fuel cans, a full charge costs about 50cents. A solar-panel-supported charging system can also be a practical fit for an acreage, workshop, or off-grid-minded property. The energy has to come from somewhere, but using home electricity or solar power puts you in control of how the machine is fueled.

What the Project Actually Requires

This is a hands-on conversion, not a bolt-on accessory. You should be comfortable removing the old engine, working with hand tools, following electrical diagrams, mounting components, and taking your time. You do not need to be a professional mechanic or electrician, you don't have to worry about getting electric shocks from 48v but you do need to respect the current that batteries can store.

Before beginning, inspect the tractor from front to back. Verify that the steering works, the wheels and tires are serviceable, and the deck is worth keeping. Measure the spaces where the batteries will be installed,2 at the front and 2 at the rearmer traction.

A successful conversion also depends on using components that were selected to work together. The drive transaxle and motor, cutter motors, controllers, batteries, charger, wiring, fuses, switches, and mounting hardware are a system. Substituting parts without understanding voltage, current draw, or mechanical fit is where many DIY projects become difficult.

That is why detailed instructions matter. Edmond Electric has focused on electric tractor conversions since 1999, with a design intended for capable homeowners rather than a factory engineering department. Step-by-step digital download conversion plans are available for purchase on this website, electrictractor.net. The 48V plans include mechanical and electrical drawings, more than 70 numbered photographs, and instructions that show how the pieces fit together instead of leaving you to guess from a parts list. Two years of free email support gives builders a place to ask questions as the project moves from the workbench to the lawn.

Where Electrification Makes the Most Sense

An electric conversion is especially appealing when the original engine has failed but the rest of the tractor is still sound. It can also make sense when you are tired of difficult starting, fuel storage, noise, exhaust, and routine engine maintenance. Instead of replacing an entire mower, you are getting rid of the problem parts.

There are trade-offs. A conversion takes time, careful work, and an initial investment in electrical components. Lead-acid batteries add significant weight. Lithium batteries reduce weight but increase the purchase cost.

The advantages are easy to feel. The tractor is quieter around the house. You are not breathing exhaust while mowing. You are not storing gasoline in the shed. And an older machine gets a useful second life rather than being discarded because its engine became a nuisance.

A Better Use for a Good Old Tractor

Electrifying an old riding tractor is not a shortcut. It is a rebuild with a purpose: keep the useful steel, remove the gasoline headaches, and create a mower that fits the way you want to care for your property.

Take the time to choose a solid tractor, inspect the 42-inch deck, and follow a proven 48V design rather than improvising critical electrical details. Then the first quiet pass across your lawn will feel less like a repair and more like a machine you built to last. YOU CAN DO THIS.
